Product Description

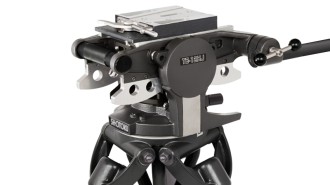

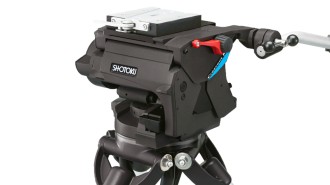

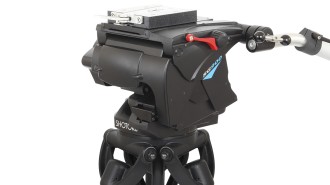

The TT-17 is ideally suited for Studio/OB camera systems using compatible pan-tilt heads such as the robust SG900, TE-23 or TE-12 pan and tilt heads. All standard studio and outdoor broadcast tripods are formed with a unique single coaxial tube structure, creating a lightweight and highly rigid unit. Ergonomically designed simple-to-use leg extension locks combined with a robust built-in mid-level spreader and enhanced rust-proof steel make the TT-17F more rigid and reliable in any scenario, for years to come.

Specifications

Max. Payload
130kg / 286.6lbs
Max. Height
1,250mm / 49"
Min. Height
655mm / 26"
Transportation Length
840mm / 33"
Extension
Single
Weight
12kg / 26.5lbs
Material
Outer tube: aluminium, Inner tube: special rust-proof steel
Tube Diameter
φ45(outer), φ35(inner)
Mount for Head
M70 Mitchell
Suitable Head
SG900, TE-23 & TE-12
Suitable Dolly
TD-13, TD-32
