Product Description

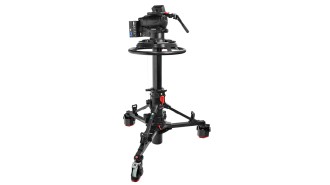

The Shotoku TP500 is a compact and lightweight pneumatic pedestal capable of supporting kit payloads of up to 55 kg.

Suitable for multi-location use such as OB, studio or event production, the robust modular design of the TP500 allows simple transportation between locations, without compromising its ability to provide a stable platform for camera operators.

Regardless of the broadcast location, the TP500’s integrated inflation pump offers flexibility and freedom to shoot wherever they want, whenever they want.

Specifications

Max. Payload
55kg / 121.2lbs
Max. Height
1,485mm / 58.5”
Min. Height
670mm / 26.4”
On-Shot Stroke ( Upper Column )
405mm / 15.9”
Tracking Width
950mm / 37.4”
Transit Width
860mm / 33.9”
Weight
27.0kg / 59.5lbs
Ground Clearance
20mm / 0.8”
Wheel Diameter
125mm / 5”
Steering Ring Diameter
535mm / 21.1”
Individual Trim Weights (x6)
0.5kg / 1.2lbs
Mount
4 bolt Flat Base
Suitable Heads
SX300, SX260 (+TZ-63 adapter), SX200 (+TZ-63 adaptor)
