TR-S Control Panel

Share
Facebook
Twitter
LinkedIn

Product Description

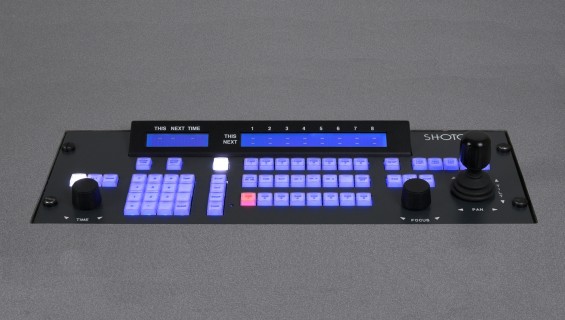

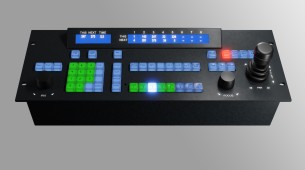

Our TR-S panel is designed to provide comprehensive control primarily for Parliaments and Legislatures where large numbers of stored shots are often required for every camera position. Hundreds of shots may be stored on each camera for recall either manually (by entering the seat number on the TR-S numeric keypad) or more commonly, through automation systems like our Orchestra Camera Management System in response to a microphone or touch screen trigger.

Like all our panels, the TR-S panel has a high-precision three axis proportional joystick for pan, tilt and zoom. Focus control is provided via a high resolution rotary encoder. A clear LCD display informs the operator of all important information regarding the currently selected camera, such as shot position, next shot position selected, transition fade time as well as limits and other general status information. Full-colour LED illuminated keys provide further clear indication of operation mode status and camera availability.

Up to 16 cameras may be controlled from each TR-S panel (8 standard). Even cameras not currently selected may be directed to move to a given shot through a single button press, with no need to deselect the current camera. Unlimited multiple panels may be installed in a single system to share control between operators or physical locations as well as provide added system redundancy in the often high demand systems.

Specifications

Controls
3-Axis proportional joystick for Pan, Tilt and Zoom Rotary encoder for Focus 2-Line LCD showing This Shot, Next Shot and Status for all Cameras Fade, Cut, CRuZe and Stop shot recall controls 900 Preset shots per camera Adjustable Fade time Multiple Room Selection (Camera Maps) Full colour illuminated keys (showing on-air, local etc.)
Connections
10/100 RJ-45 Ethernet control network IP, Serial or GPO preview router control output IP (TSL-5) or GPI On-Air tally input
Size
19” Rack mount, 4RU high
Power
100-240V AC 50/60Hz
Close
