Micro PDU

Share
Facebook
Twitter
LinkedIn

Product Description

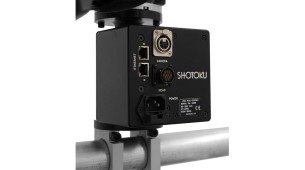

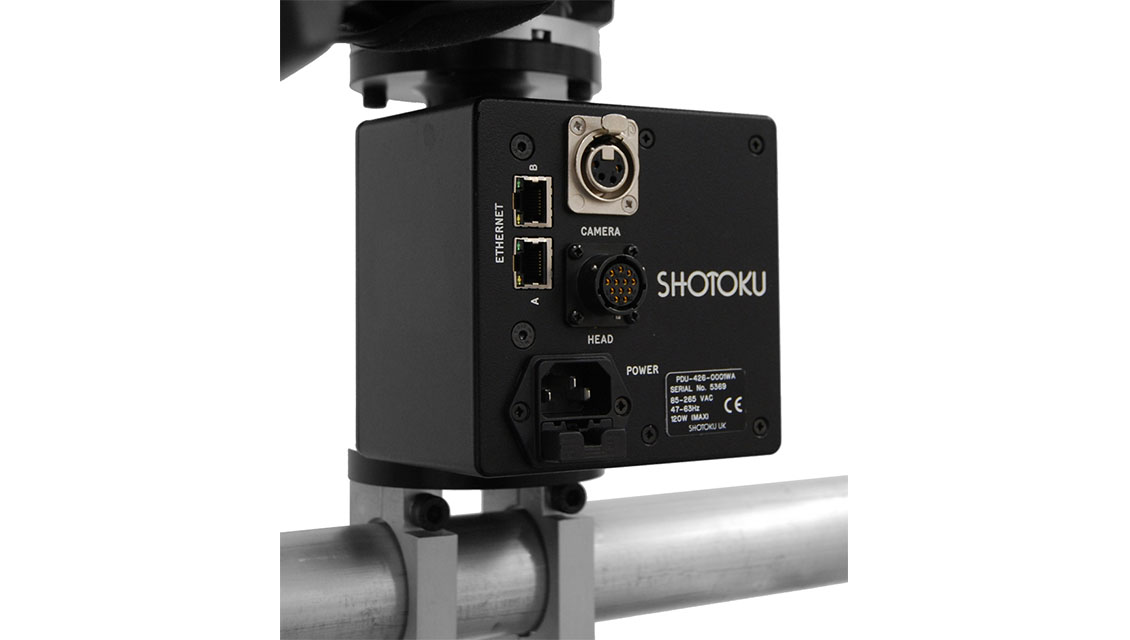

The MicroPDU is a self-contained power supply and data connection point for TG-27 heads, ideal for applications where the head will be installed in a distant location with only AC power and IP Network connection being conveniently available.

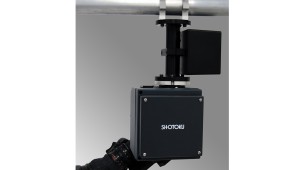

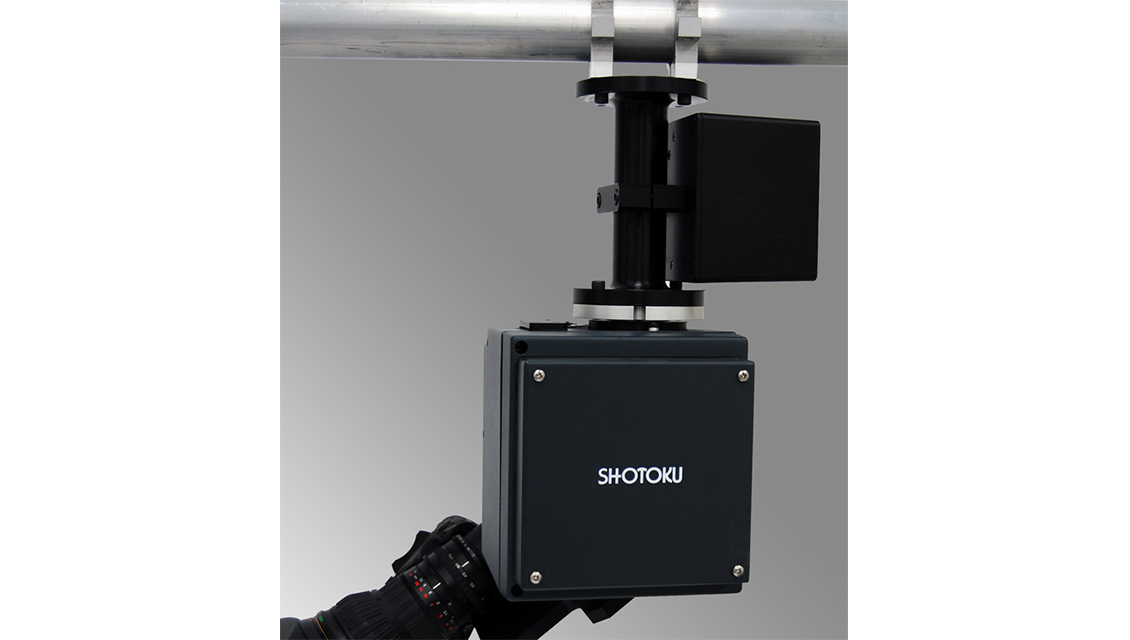

The PDU sits directly under (or anywhere nearby) the TG-27 head and supports power and control for the head as well as 12VDC for standard camera systems. Dual Ethernet connections allow Shotoku’s unique RNI option to be implemented.

Being separate to the head itself makes service quick and easy and does not require any interference within the head itself.

Specifications

Inputs
85-265 VAC 2 x RJ-45 Ethernet
Outputs
48VDC 60W for TG-27 12VDC 60W (ENG or PoV Camera) 19P Head connection cable XLR-4 Camera Power Socket
Dimensions
120x120x60mm (4.7x4.7x2.5) 1.1kg (2.4lbs)
