Product Description

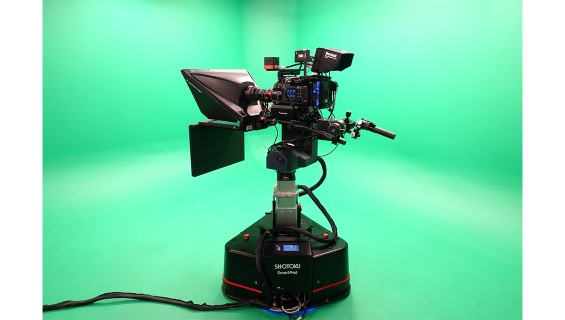

SmartPed is designed to meet the requirements of most robotic camera applications, ranging from lightweight payloads to fully-loaded cameras with large lenses, hand-controls and prompters, and accessories.

The pedestal’s self-contained, fully digital electronic management system, working with the overall Shotoku control system, provides a powerful remote-controlled device capable of precise movement in all controlled axes (PTZFHXY) with finger-tip joystick control. Advanced navigation capabilities and proximity detection devices ensure the pedestal remains aware of its position and surrounding area at all times.

The internal navigation system ensures that pre-set shots are stored easily, and recalled with precision in a smooth on-air motion whenever required.

Specifications

Max Payload
90kg (198lbs)
Min Height
680mm (27")
Max Height
1430mm (56")
Collision Avoidance
Multi-Zone Ultrasonic
Collision Detection
Multi-Zone Bumper Strip
VR Tracking
Option
Power
110 - 240 VAC 500W peak
Height Range
750mm (29.5")
Height Speed
1-100mm/s (0.04-4"/s)
Pedestal Speed
1-300mm/s (0.04-12"/s)
Local Display
Integrated LCD color touchscreen
Status Indication
Subtle floor-level LED illumination (Moving/E-Stop/Referenced/Local)
Emergency Stop
Local illuminated E-Stop buttons (instantly shut down all drive circuits) Remote E-Stop
