TG-18i

Share
Facebook
Twitter
LinkedIn

Product Description

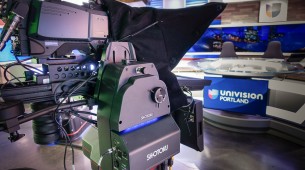

The TG-18i is based on Shotoku’s highly popular and on-air proven TG-18 Pan and Tilt head.  The TG-18i is at the heart of the Shotoku remote camera range, being widely used either standalone or with TI-12 or TI-11 elevators and SmartPed robotic pedestals.  The TG-18i variant now allows customers to choose to have the CMC motion control system and PDU power unit fully integrated within the body of the TG-18 itself.

With integrated CMC and PDU, the TG-18i provides convenient connection points to the outside world, typically needing only AC power and network directly to the head.  One of the benefits of a separate CMC is ease of service, but this is not compromised on with the TG-18i.  It is still a simple task to access the internal electronics and power circuits without any impact on the head or the payload, making service easy.

Find a Dealer

Specifications

Payload
62Kg / 136lbs
Tilt range
+-45deg
Pan range
350deg
Max speed
60 deg/sec
Min speed
0.01 deg/sec
Manual operation
Fully declutched. Variable fluid drag.
Network
1 (2-RNI) Control. 1 LiveView PoE
VR Output
Option (over IP)
Mounting
4-bolt flat mount
Input power
110 - 230VAC
Output power
12v 60W Camera/accessory
