AN-S (Absolute Navigation System)

Share
Facebook
Twitter
LinkedIn

Product Description

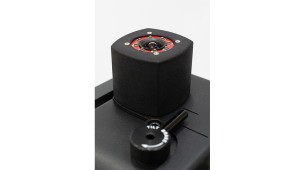

AN-S is a Shotoku supplied system based on a simplified Mosys Star Tracker system,  used ONLY to give SmartPed absolute navigation data.  AN-S includes hardware in the form of a small camera and separate processor and requires reflective markers to be installed on the ceiling.   This removes the need for reference floor tiles and allows the Smartped to be continuously referenced.

SmartPed has proven itself to offer exceptional performance day after day for live news and sports broadcasts.  Its navigation system is based on precision encoded sensors monitoring every minute turn of the wheels to calculate the new XY position, relative to the home tile.

Depending on the style of the production, and environmental factors such as the floor, the pedestal will occasionally require re-referencing, and always after power-on.  Re-referencing is done by returning to the home tile.

This homing process may not be convenient in all cases and  broadcasters may wish to avoid any type of home tile on the studio floor.

In these cases SmartPed’s Absolute Navigation System option is ideal. AN-S uses ceiling mounted reflective markers and a small reference camera to constantly plot the SmartPed’s position in the studio providing maximum accuracy for shot repetition.

Find a Dealer

Key Features

  • Eliminates home tile and manual referencing
  • Third party (ANS) or fully integrated (ANSi) tracking
  • Highly Accurate, On-Air Shot Positioning
  • No impact on existing VR tracking system
  • Compatible with industry standard tracking systems (e.g. StarTracker, RedSpy)

Specifications

Tracking System
Absolute optical tracking. Mo-Sys StarTracker® Stype RedSpy®
Input Protocol
‘Free-d’ VR protocol over IP
