Product Description

8 Levels of Counterbalance | 10kg Max. Payload —

Shotoku SE systems provide high functionality and application flexibility and are designed for the extended range of camera systems available today. The SE system range features a high-quality drag system to ensure smooth on-air moves and a multiple level counterbalance system to ensure accurate balancing of a wide range of cameras.

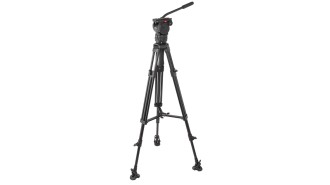

The SE80 supports up to 10kg ( 22 lbs ) and has 8 levels of counterbalance and 4 grades of drag. The system comes complete with an aluminum 2 stage tripod, mid-level spreader or ground-level spreader, and a soft carrying case. A dolly option is also available.

SE80 – A2G System

  • SE80 head
  • Single, fixedーlength pan bar
  • 2-stage aluminum tripod
  • Ground-level spreader
  • Soft carry case

SE80 – A2M System

  • SE80 head
  • Single, fixedーlength pan bar
  • 2-stage aluminum tripod
  • Mid-level spreader with foot pads
  • Soft carry case
Find a Dealer

Key Features

  • Eight levels of counterbalance
  • Four grades of drag
  • Two systems to choose from based on performance needs
  • Head, fixed-length pan bar, tripod, spreader (mid-level or ground-level), and soft carrying case included
  • Dolly option available

Specifications

Max. Payload
10kg / 22lbs
Optimum Payload Range
1kg ー 8kg / 2.2lbs ー 17.6lbs
Pan Range
360°
Tilt Range
+85° ~ ー75°
Counterbalance
8 Steps
Pan and Tilt Drag
4 Steps ( 3 + 0 )
Camera Fixing
Twoーway sliding quick release plate with 1 x 1/4” screw + pin and 1x 3/8” screw
Pan Bar
Single, FixedーLength
Mount
75mm Ball
Temperature Range
ー40°C ー 60°C / -40°F ー 140°F
Level
Bubble
Weight
SE80-A2G System: ---kg / ---lbs SE80-A2M System: ---kg / ---lbs
