TK-38

Share
Facebook
Twitter
LinkedIn

Product Description

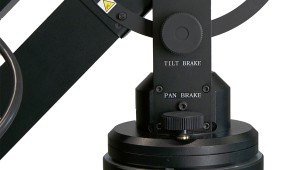

Designed for OB and studio applications and engineered with mobility in mind, the TK-38 servo control crane requires only a single cameraman to operate and is capable of being disassembled and transported. Users can also operate it as a remote control pan and tilt head system simply by removing the remote head and pan bar operation unit.

Specifications

Max. Payload
10kg / 22lbs
Overall Length
3,474mm / 11'5"
Max. Optical Height
2,878mm / 9'6"
Head Pan / Tilt Range
Pan Angle ±120° Tilt upward 60° Tilt downward 90°
Power Consumption
DC24V ±10% less than 95W AC100-240V ±10%
Weight
67kg / 147.7lbs
