TK-38VR Crane System

Share
Facebook
Twitter
LinkedIn

Product Description

The TK-38VR is a small-sized, yet fully-featured VR tracking crane for virtual and augmented reality offering a convenient mix of flexibility without the size constraints of some of larger crane systems. The electronically controlled remote pan and tilt head follows every move of the operator’s pan bars to provide smooth and accurate control at all angles. A mounting bracket (provided) for a small monitor (not provided) helps to act as a viewfinder for the camera operator.

The crane can be supported in one of three ways depending on production requirements and budget restraints:

  • Fixed: TT-17 Tripod
  • Mobile:  TT-17 Tripod with TD-13 or TD-32 Dolly
  • Mobile and Full XY Position Tracking: TI-04 VR dolly

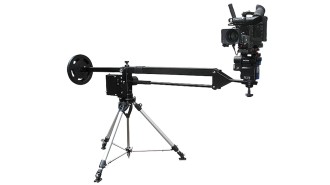

Like all our VR tracking systems, the TK-59VR crane is compatible with all leading VR systems.

When used with the SPi-Touch system the TK-38VR crane may be repositioned to pre-stored floor positions without the need for the full VR tracking pedestal base.

Specifications

System Overall Length
3,534mm / 11'7"
System Max. Lens Axis Height
2,837mm / 9'4"
System Max. Payload (TG-13VR head)
10kg / 22lbs
Total Weight
120kg / 264lbs
Head Pan Range
240°
Head Tilt Range
+60° to -90°
Arm Tilt Range
+56° ~ ‐56° Arm tilt range varies depending on system configuration.
Control Mechanism
Pan Bar Control Unit
Resolution (Head Pan/Tilt)
86,400/360°
Resolution (Arm Pan/tilt)
640,000/360°
Data Box Connectivity
SPI-3
2PT Calibration System
SPi-TOUCH (Optional)
Tripod
TT-17 OB Tripod
Dolly
TD-13 Studio Dolly
