Product Description

The SX300 is an EFP pan and tilt head with exceptional performance ideal for a wide range of applications including field production, OB or studio use. A robust design with integrated perfect counterbalance is suited to today’s portable camera systems with payloads up to 40kg (88lbs).

The head is fully equipped with many easily operated user controls including continuously adjustable drag, pan and tilt locks, and quick release sliding camera plate. Other features such as illuminated bubble level and removable pan bar mount make setup and maintenance of the head easy.

Two models are available to suit common lighter or middle-weight payloads: SX300L: 30kg / 66lbs or SX300H: 40Kg / 88lbs

Available in 3 system configurations!

Key Features

  • Viscam fluid drag technology with continuously adjustable drag

Specifications

Max. Payload
SX300H: 40kg / 88lbs SX300L: 30kg / 66lbs
Optimum Payload
SX300H: 31kg / 68.3lbs SX300L: 18kg / 39.6lbs
Pan / Tilt Range
360° / ±90°
Counterbalance
Continuously Adjustbale Perfect Balance
Drag
Viscam Continuously Adjustable Fluid-Leaf System
Temperature Range
-40°C to +60°C
Mount

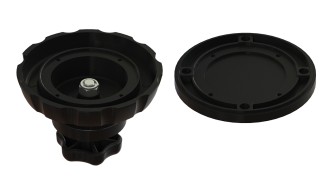

4-Bolt Flat Base, 150mm Ball, M40 / M70 Mitchell
Camera Fixing
Sliding Camera Plate
Leveling
Illuminated Bubble
Suitable Pan Bar
TJ-60 Telescopic Pan Bar
Pan Bar Mount
Removable
Bubble Level
Illuminated
Weight*
Flat Base: 8kg / 18.7lbs Ball Base: 8.3kg /19.4lbs *including two TJ-60 pan bars
