TK-59VR / SH120VR System

Share
Facebook
Twitter
LinkedIn

Product Description

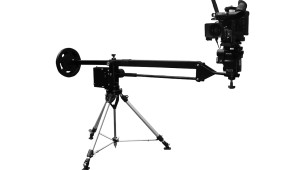

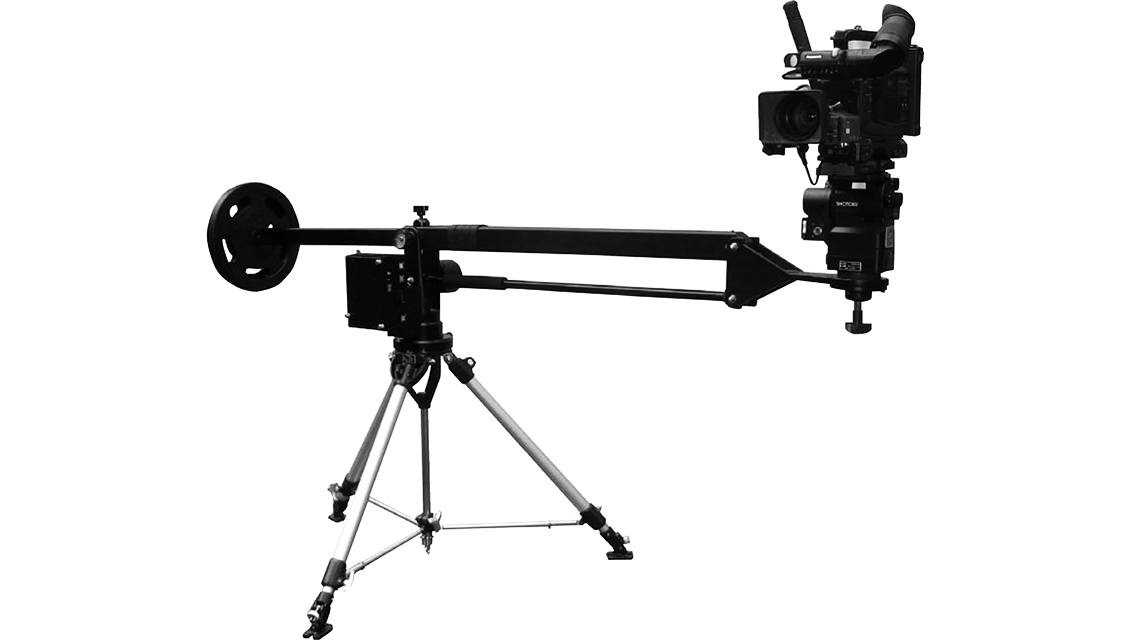

The TK-59VR/SH120VR System is a lightweight, portable jib system for virtual applications. Rigid and compact, the jib offers reliable and accurate VR tracking capabilities and data output via RS-422 or IP using industry-standard protocols.

Specifications

System Overall Length
Approx. 2.4m / 7’10”
System Height
450mm / 17.7” When jib crane is at its horizontal position
System Max. Payload
15kg / 33lbs
Total Weight
70kg / 154lbs (including counterweight)
Camera Pan/Tilt Range
Pan: 360° Tilt: +75°~ -60°
Arm tilt range
+60° ~ ‐45°
Head Counterbalance
Continuously Adjustable Perfect Balance
Head Drag
Continuously Adjustable Fluid-Leaf
Mount
100mm Ball
Resolution (head pan/tilt)
640,000/360°
Resolution (arm pan/Tilt)
640,000/360°
Data Box Connectivity
SPI-3
2PT Calibration System
SPi-TOUCH (Optional)
Max. Lens Axis Height
Approx 2.1m
Min. Lens Axis height
Approx. 0.3m
Tripod
TT-64 OB Tripod
Dolly
TD-13 Studio Dolly (Optional)
