SH120VR

Share
Facebook
Twitter
LinkedIn

Product Description

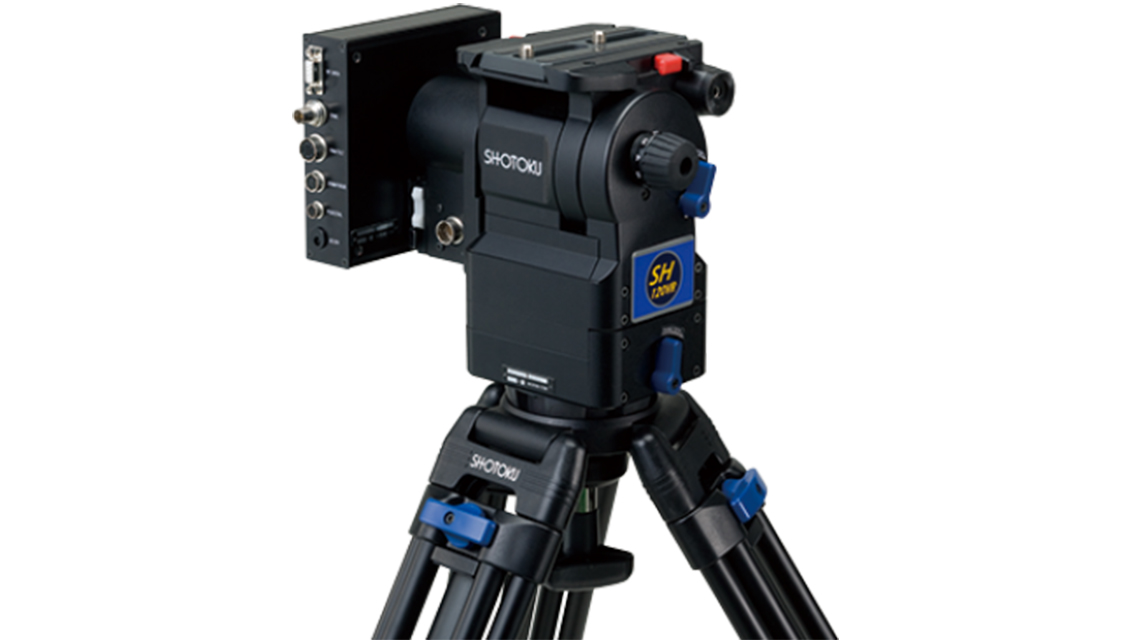

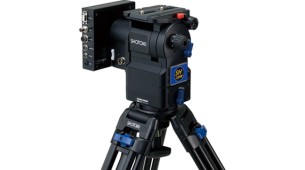

SH120VR is designed as 100mm ball Virtual studio Camera Head. Maximum payload 25kg. Built-in high precision encoder for Virtual studio applications sends out fast and accurate camera positional signal to the computer.

Specifications

Optimum Payload
12kg - 18kg (26.4-39.6lbs)
Pan Range
360°
Tilt Range
+75°/ -60°
Counterbalance
Continuously Adjustable Perfect Balance
Drag
Continuously Adjustable Fluid-Leaf System
Camera Fixing
Sliding Camera Plate
Pan Bar
Telescopic (PBR x1)
Weight
6kg / 13.2lbs
Mount
100mm Ball
Resolution (PAN)
640,000 counts/rotation
Resolution (Tilt)
640,000 counts/rotation
Data Box Connectivity
SPI-4 IP or SPI-5
Suitable Tripod/Crane
TTH1002C, TTM1002c, TK-59VR mini jib crane
