Product Description

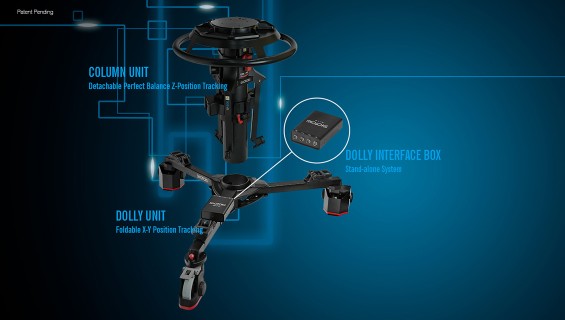

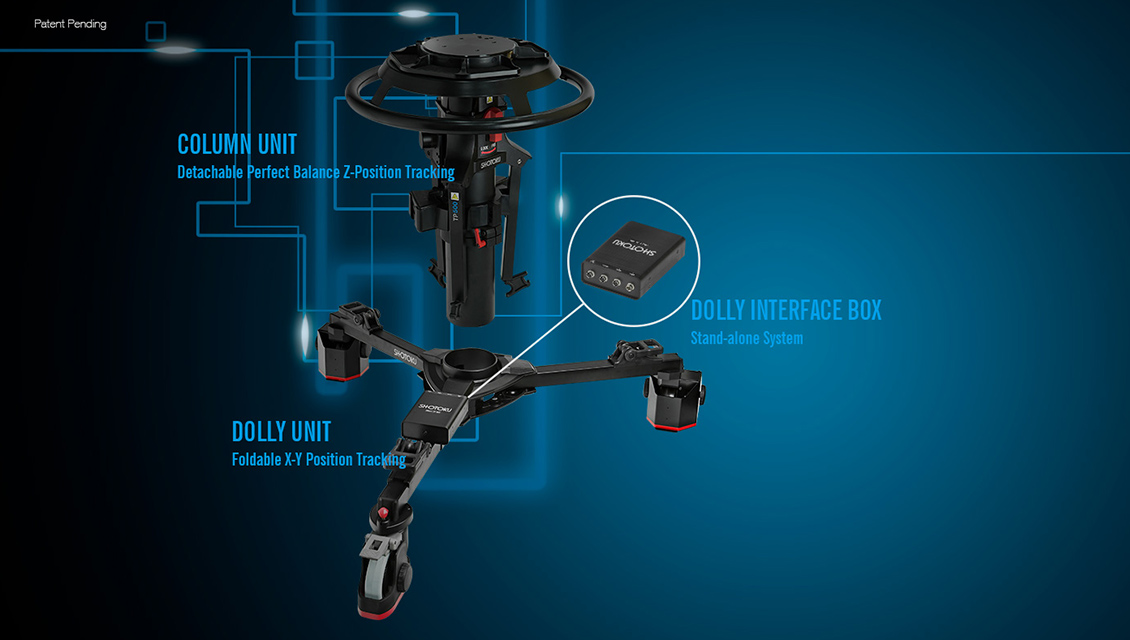

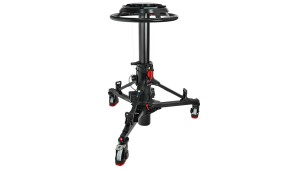

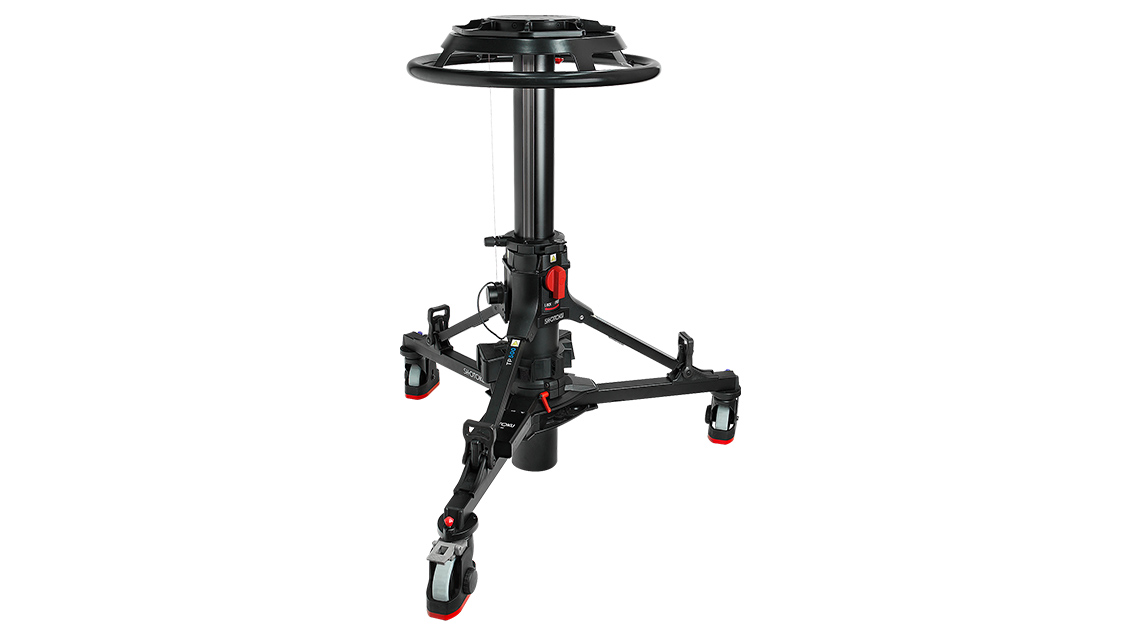

The TP500VR is our most compact and affordable broadcast-grade pedestal for virtual reality and augmented reality studio applications ever. Using proprietary algorithms and high-resolution Shotoku mechanical encoders, the TP500VR outputs optical position data over industry-standard protocols in real-time, even live. Careful attention has been given to the design of the TP500VR mechanical tracking system in order to make virtual and augmented studio technology more affordable than ever while still maintaining the light, portable footprint of the original TP500.



The TP500VR is an ideal choice in today’s industry where increasing demands for captivating content in live sports and news challenge broadcasters to bring their production to the next level.



Features:

  • New, affordable fixed-handle mechanical tracking pedestal.
  • Broadcast-Quality virtual and augmented reality for everybody.

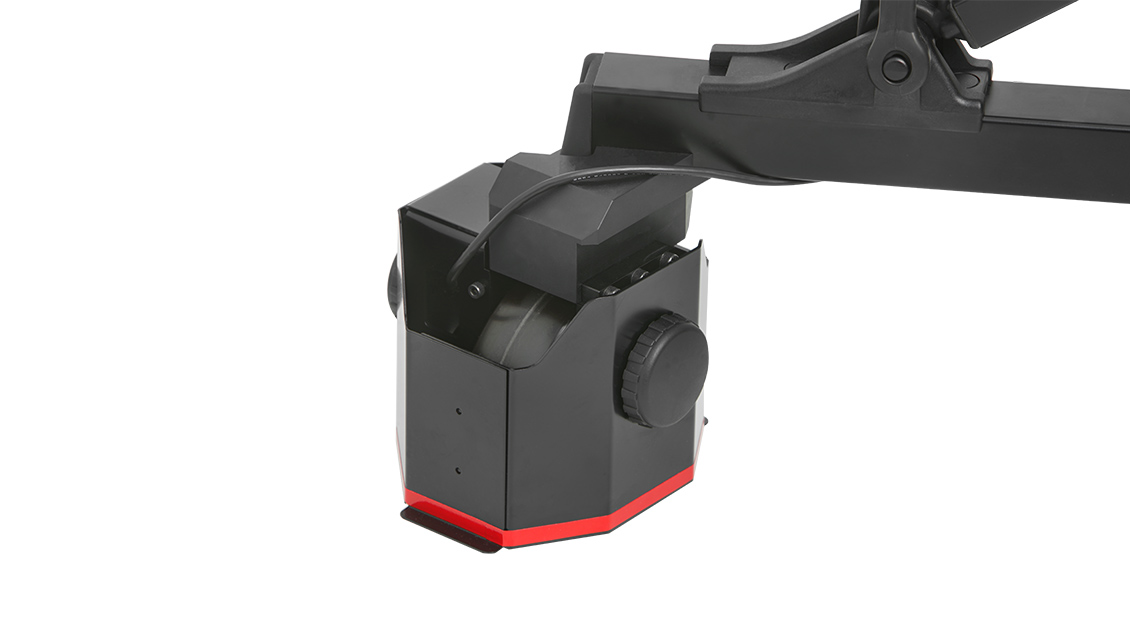

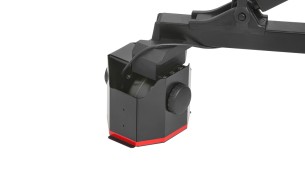

  • High-Resolution Shotoku mechanical encoders.
  • Output industry-standard VR data to all major graphic engines.
  • Real-Time Data Output.
  • Create compelling virtual and augmented images, even in live productions.
  • SPi-TOUCH compatibility.
  • Easily calibrate and fine-tune the virtual image locally.
  • Patent-Pending System

Specifications based on TP500VR / SX300VR System.

Find a Dealer

Specifications

Max. System Payload*
40kg / 88lbs
Optimum Payload
13-38kg / 28.8 - 83.6lbs
Pan Range
360°
Tilt Range
±90°
System Max. Height
1,720mm / 67.72"
System Min. Height
905mm / 53.63"
Dolly Travelling
Steering / Track Lock
Pan / Tilt Resolution
640.000 counts/360°
XYZ Resolution
0.05mm
Origin Detect
2-point Calibration (Patent-Pending Technology)
Protocol
D1 (RS-422 / UDP)
Output Delay
Real-Time Output
