Product Description

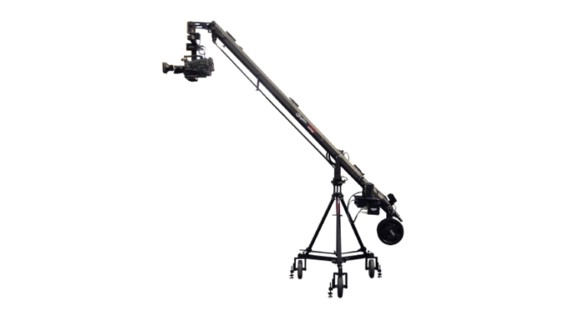

The Graphica Series is the fusion of superb SHOTOKU VR technology and the engineering know-how of the prestigious crane maker, CamMate. The result is a product with industry-leading VR tracking capabilities in a package that is portable, scalable, stable and, most importantly, repeatable.

CamMate cranes have been in use in the television and film industry for over 20 years and, with a philosophy of continuous improvement, are admired for their quality of engineering and the creative camerawork made possible by the smoothness and control of the high-performance servos.

Graphica calculates positional data output from embedded physical rotary encoders designed specifically for VR applications. Free of the jitters, external markers, and area limitations often associated with other positional tracking systems, Shotoku encoders seamlessly process data via the SPI interface to provide real-time data output, in the studio or on location.

The SPi-TOUCH Origin Reset and 2-Point Calibration function adds another level of convenience and high production flexibility. Complete calibration of the system is needed only once after booting-up and can be achieved in 20 seconds, allowing the crew valuable additional time for setting camera position and for shot composition. SPi-Touch comes standard on every model.

Suitable for all types of production, 7 models of varying lengths are available to create dynamic camerawork in the smallest studios or the largest of outdoor sporting events. Custom-made carry cases for easy transport are included with every purchase.

Consult your Shotoku representative for payload requirements over 10kg.

Please download the datasheet for full specifications on all seven models.

Specifications

System Overall Length
2,500mm ~ 12,400mm
Reach
1,500mm ~ 10,000mm
System Max. Lens Axis Height
2,100mm ~ 6,800mm
Total Weight (Without Counterweight)
82kg ~ 232kg
Dolly
3-Wheel or 4-Wheel
Head Max. Payload
10kg/22lbs
Calibration System
SPi-TOUCH X-Y Origin Point Reset
Power Consumption
AC 100-240V +/- 10% Less than 150W
Temperature Range
0°C ~ 40°C
Input Signal
Camera Sync, PTZF, Crane PT
Output Signal
RS-422 D1 Protocol
Head Pan/Tilt Resolution
640,000 Counts Per Revolution
Arm Pan/Tilt Resolution
640,000 Counts Per Resolution
Lens Control and Position Cables
Standard 12-pin or 20-pin
Control Mechanism

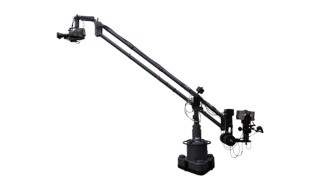

Joystick and Pistol Grip
Mechanical Lens Encoder (Optional)
TY-05
Compatible with Most Major Graphic Engines
