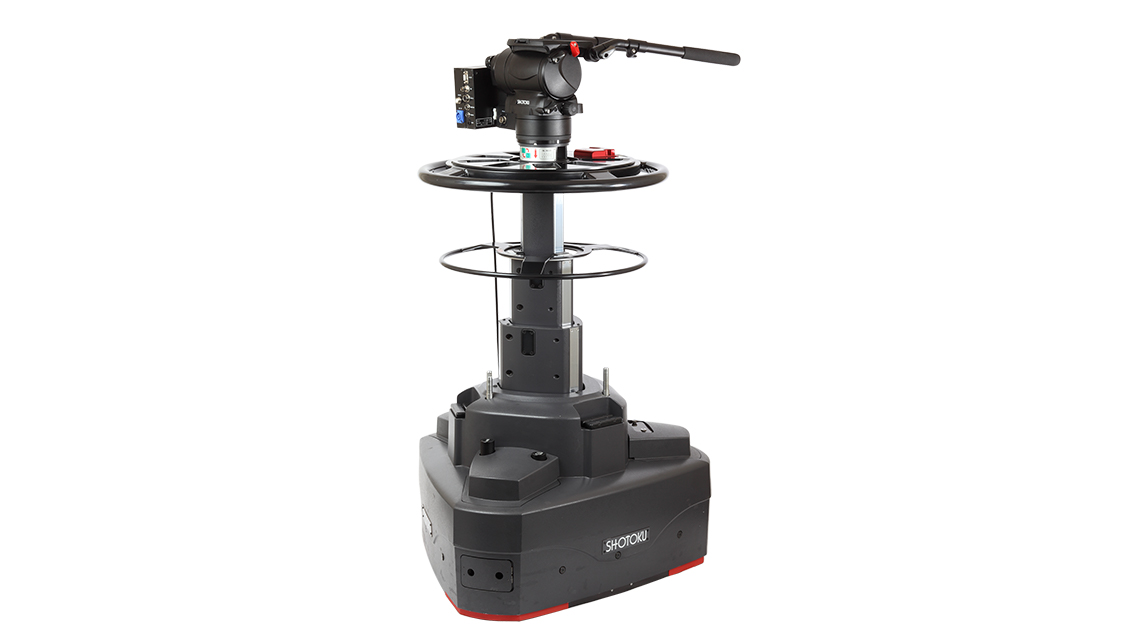

TP-90VR / 300VR System

Share
Facebook
Twitter
LinkedIn

Product Description

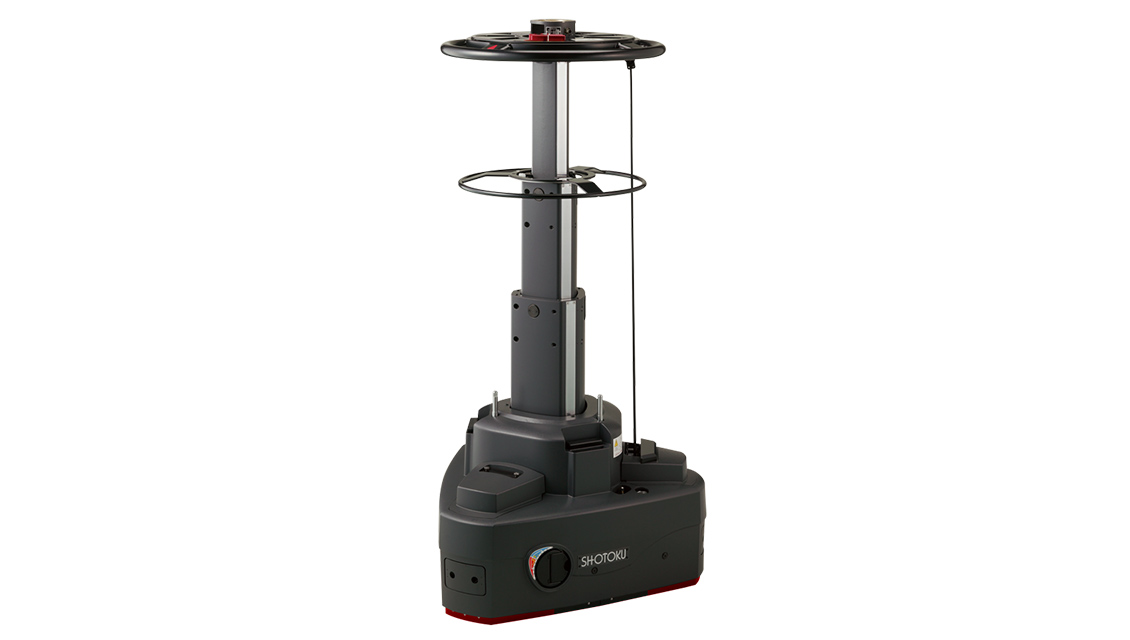

The TP-90VR/300VR System offers industry-leading VR tracking without compromise in accuracy or ease of operation and does so in a lightweight, cost-effective package. On-air performance is robust, exceeding the most demanding applications thanks to highly accurate data output to the VR graphics system precisely synchronized to the camera’s floor position, orientation, and height.

A unique 3-stage design and extremely slim transit width make the TP-90VR/300VR a compact and versatile virtual pedestal system for a wide
range of studio applications.

Specifications

Resolution (Pan/Tilt)
640,000 counts per 360°
Resolution (XY)
0.02mm
Resolution (height)
0.2mm
data output
IP Ethernet UDP and RS422 dual output
Power Input
AC85~250V DC12V (10~18V)
Standard Cable
Head, B.B., VR Data Cable 10m
Lens cable
Zoom/focus data cable for Canon or Fujinon Lens encoder unit is available for non-virtual Canon (TY-05C) and Fujinon (TY-05F) lenses.
Data Box Connectivity
SPI-4 IP
Mount
M40 Mini Mitchell
System Max Payload
40kg / 88lbs
Pan / Tilt Range
360°/ ±90°
System Max. Height
1,781mm / 70”
System Min. Height
836mm / 33”
On-Shot Stroke
945mm / 37”
Transit Width
728mm / 29”
System Weight
176kg / 388lbs
Wheel Diameter
with unlimited tracking area TP-90VR / 300VR SYSTEM Optional SPi-TOUCH TP-90VR / 300VR in studio Three Stage Studio Tracking Pedestal System Three stage perfectly balanced column to effortlessly control smooth shots over a wide height range 640,000 counts per 360° 0.02mm 0.2mm IP Ethernet UDP and RS422 dual output AC85~250V DC12V (10~18V) Head, B.B., VR Data Cable 10m Zoom/focus data cable for Canon or Fujinon SPI-4 IP M40 Mini Mitchell 40kg / 88lbs 360°/ ±90° 1,781mm / 70” 836mm / 33” 945mm / 37” 728mm / 29” 176kg / 388lbs 130mm / 5”
Specifications not listed are the same as the TP-90
