TP-80DVR / 23DVR System

Share
Facebook
Twitter
LinkedIn

Product Description

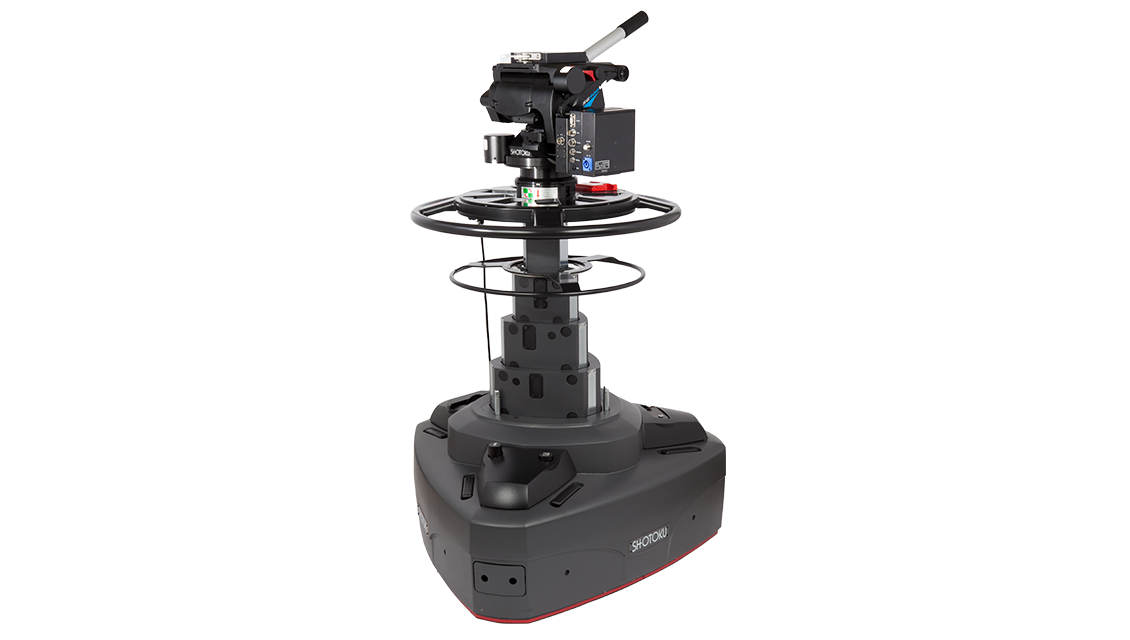

The TP-80DVR/23DVR System* offers industry-leading VR tracking with robust on-air performance exceeding even the most demanding applications. Pedestal X/Y referencing is initiated using a single hardware push-button and completed by running over a reference tile. Data follows industry-standard protocols supported by all leading graphic systems and is sent in a single, combined signal. Minimal user intervention is required, enabling the operator to focus entirely on camera operation. Zoom and focus data are gathered directly from VR-ready lenses or Shotoku’s own lens encoder units for non-virtual lenses.

*Available in SG900VR Option: Max Payload 90kg, Max. Height 1,842mm/72.5”, Min. Height 842mm/33”

Specifications

Resolution (Pan)
800,000 counts per 360°
Resolution (TILT)
640,000 counts per 360°
Resolution (XY)
0.02mm
Resolution (height)
0.2mm
Data Output
IP Ethernet UDP and RS422 dual output
Power Input
AC85~250V DC12V (10~18V)
STANDARD CABLE
Head, B.B., VR Data Cable 10m
Lens Cable
Zoom/focus data cable for Canon or Fujinon Lens encoder unit is available for non-virtual Canon (TY-05C) and Fujinon (TY-05F) lenses.
Data Box Connectivity
SPI-4 IP
MOUNT
M70 Mitchell
System max. Payload
60kg / 132lbs
Pan / Tilt Range
360°/ ±60°
System Max. Height
1,857mm / 73”
System Min. Height
857mm / 33.7”
On-Shot Stroke
1000mm / 39”
Transit Width
848mm / 33"
System Weight
223kg / 491lbs
Wheel Diameter
126mm / 5”
Specifications not listed are the same as the TP-80D
